3D Printing and Custom Models and Silicone Molds
3D printing and custom models or making and the printing of some detailed molds. Offering speed, precision, and flexibility. However, while 3D printing can produce silicone molds directly from the printers, their most effective as a tool and method for producing models or prototypes that are refined and then turned into final molds. This distinction is crucial because 3D printers have limitations, such as print area size and surface finish quality, which can affect their usability for large-scale or highly polished mold as is needed in many crafts like resin jewelry, candle or soap production.
Table of Contents
Understanding the Role of 3D Printing and Custom Models and Mold-Making
As an Amazon Associate, I earn from qualifying purchases.
This post contains affiliate links. If you make a purchase through these links, I may earn a commission at no extra cost to you.
Prototyping and Model Creation
Primary Role: The most common use of 3D printers in mold-making is to create highly detailed models or prototypes. These prototypes are then used to craft final molds from using traditional methods like silicone casting or vacuum forming.
Advantages: 3D printing allows for rapid prototyping, making it easier to iterate designs before committing to final molds. This process is invaluable for testing and refining complex or intricate designs. This is especially true when silicone molds are to be made as the silicone replicates the exact surface that you have on your model.
Direct 3D Printing and Custom Models And Mold-Making Limitations
Print Size Constraints: Most consumer and even prosumer-grade 3D printers are limited by their build area, making it challenging to print larger molds in one piece.
Surface Finish: The layer lines from 3D printing often require extensive post-processing to achieve the smooth surface necessary for silicone casting. While sanding or resin coating can help, achieving a perfect finish can still be labor-intensive.
Material Considerations: 3D printed molds may lack the durability required for repeated use or exposure to high temperatures during silicone curing.
By understanding these limitations, it’s clear that 3D printers excel as tools for creating masters or prototypes, which can then be finished and used to craft molds with higher precision and quality.
Advantages of Using 3D Printing and Custom Models for Prototyping
1. Customization:
Prototyping with 3D printers allows for intricate designs that can be easily modified. The flexibility of CAD software ensures that models can be adjusted before creating the final mold.
2. Speed:
Rapid prototyping with 3D printing significantly reduces the time from concept to model, making it easier to refine designs quickly.
3. Cost-Effectiveness:
Prototypes can be printed at a fraction of the cost of traditional master-making methods, especially for one-off designs or experimental pieces.
4. Scalability:
Models created with 3D printers can serve as a base for molds in a variety of materials, from silicone to plaster or resins, depending on the final application.
Applications of 3D Printing and Custom Models in Mold-Making
Prototypes for Final Mold Creation
3D printing is ideal for producing prototypes that can be further refined and used to craft molds through traditional processes. For example:
A 3D printed model can be sanded, polished, or coated with resin to achieve the desired finish before creating a silicone mold.
Large molds can be crafted by printing smaller components that are assembled into a complete master.
Small-Scale Molds
While 3D printers are not optimal for large-scale molds, they can produce smaller molds for items like jewelry, resin castings, or intricate craft pieces.
Types of 3D Printers and Custom Models, Price Ranges, and Upgradability
- Filament-Based (FDM) Printers
- Entry-Level Model: Creality Ender 3 V2
- Price Range: $200–$300
- Features: Reliable for beginners, build volume of 220 x 220 x 250 mm, heated bed, and open-source firmware.
- Upgradability: Highly upgradable, with options like auto bed leveling, better extruders, and enclosure kits.

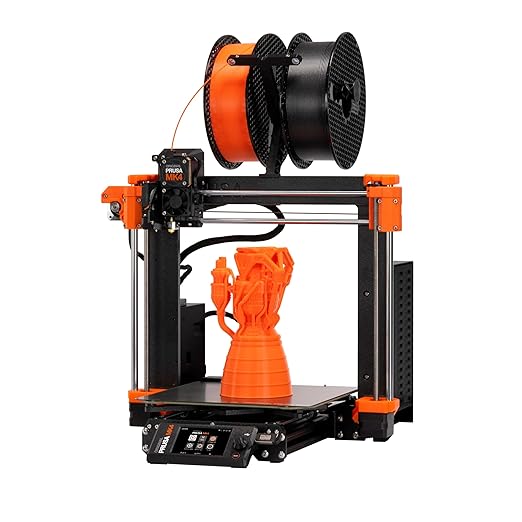

- High-End Model: Prusa i3 MK4
- Price Range: $800–$1,000
- Features: Exceptional precision, automatic calibration, multi-material upgrades, and a 250 x 210 x 210 mm build volume.
- Upgradability: Highly upgradable, with a modular design and official add-ons like the Multi-Material Upgrade (MMU).
- Entry-Level Model: Creality Ender 3 V2
- Resin-Based (SLA/DLP) Printers
- Entry-Level Model: Elegoo Mars 3
- Price Range: $300–$400
- Features: 4K monochrome screen for high detail, suitable for small, intricate molds, and easy-to-use software.
- Upgradability: Limited upgradability, but supports aftermarket resin vats and screen replacements.
- High-End Model: Formlabs Form 3+
- Price Range: $3,000–$4,000
- Features: Industry-grade precision, automated resin dispensing, and large resin library compatibility.
- Upgradability: Minimal upgradability but offers scalable workflow with Form Wash and Form Cure accessories.
- Entry-Level Model: Elegoo Mars 3
- Large-Format Printers
- Entry-Level Model: Anycubic Kobra Max
- Price Range: $600–$700
- Features: Massive build volume of 400 x 400 x 450 mm, Bowden extruder, and intuitive touch screen interface.
- Upgradability: Moderately upgradable, with options for better cooling systems and filament sensors.
- High-End Model: Creality CR-10 Smart Pro
- Price Range: $1,000–$1,300
- Features: Wi-Fi connectivity, auto bed leveling, and a large build volume of 300 x 300 x 400 mm.
- Upgradability: Highly upgradable, with support for improved extruders, enclosure kits, and even laser engraving add-ons.
- Entry-Level Model: Anycubic Kobra Max
Budgeting for 3D Printing: Costs & Considerations
Jumping into 3D printing requires more than just buying the printer; understanding the costs involved is crucial for a sustainable practice.
Initial investment can vary widely depending on the complexity and capabilities of the printer model you choose. Entry-level printers might serve hobbyists well, while professionals might angle towards pricier industrial models with advanced features.
But the spending doesn’t stop there. Ongoing costs such as filaments or resins are recurring expenses. Different materials command different prices, so knowing what best suits your molds will help in forecasting expenses.
Maintenance is another layer to consider. Regular upkeep ensures printers function well and can save money in the long run by reducing downtime and the need for pricey repairs. Replacement parts, such as nozzles and belts, are small but frequent investments.
Post-processing materials can also add up. Sandpaper, polishing machines, or even specialty coatings might be necessary to achieve that perfect finish.
Balancing quality with cost is key. Sometimes investing a little more upfront on good-quality materials or hardware can result in fewer headaches and costs over time. Carefully tracking these expenses supports long-term success in artisan mold creation.
Case Studies and Examples of 3D Printing and Custom Models
Jewelry Prototypes
3D printing and custom models are used by designers to create intricate prototypes for rings, earrings, and pendants. These prototypes are polished and used to create high-quality silicone molds for casting metals or resins.
Craft Projects
3D printing and custom models are made by hobbyists for small resin or plaster molds, creating unique decorative items or personalized gifts. Flexible filaments and detailed designs enable intricate customizations.
3D printing and custom models is a favorite of soap and candle makers too.
Comparisons: 3D Printing and Custom Models & Traditional Methods
1. Precision:
Traditional methods like CNC milling offer unmatched precision for industrial-scale projects, but they’re costly and require specialized equipment.
3D printing and custom models excels in rapid prototyping and small-scale projects but may lack industrial-grade precision without post-processing.
2. Flexibility:
Hand-carved models are time-consuming and require advanced skills.
3D printing offers repeatability and easy modifications, even for beginners
Materials Section
Filament Options for Prototyping
1. PLA: Affordable and easy to use, but not suitable for molds requiring durability or heat resistance.
2. ABS: More durable, can be smoothed with acetone, but requires ventilation due to fumes.
3. PETG: Heat-resistant and durable, making it ideal for more demanding applications.
4. Specialty Resins: SLA printers can produce prototypes with smooth finishes, reducing the need for post-processing.
Post-Processing Techniques
1. Sanding and Polishing:
Use fine-grit sandpaper to smooth layer lines on 3D prints.
Wet sanding can achieve a polished finish for better silicone casting results.
2. Resin Coatings:
Apply epoxy or resin to enhance surface quality and durability.
This step ensures the final mold reflects the smoothness of the prototype.
3. Assembly of Multi-Part Prototypes:
Larger molds can be created by combining smaller printed sections. Proper alignment and adhesive selection are crucial.
Safety Considerations
1. Printer Safety:
Ensure proper ventilation when printing with ABS or other filaments that release fumes. In line extractor units with flexible ducting work well
Avoid touching the heated elements of the printer, like beds or nozzles.
2. Material Handling:
When handling many of the products it is best to use gloves and masks when working with silicones, resins, and other solvents.
Storing materials properly to prevent contamination or degradation and labelling them to be clearly aware of the use by dates. This will save money on wasted product or time from using out of date product.
Future Trends in 3D Printing and Custom Models for Mold-Making
1. New and Emerging Materials:
Flexible filaments and high-temperature plastics are expanding the range of applications for 3D printed prototypes. Advancing the quality of printed pieces is also improving.
2. AI-Assisted Design:
CAD software integrated with AI can optimize designs for better mold performance. AI is already helping with monitoring printing.
3. Many Manufacturers are Expanding to Larger Build Areas:
Innovations in large-format 3D printers may overcome current size limitations, enabling the direct printing of larger molds.
FAQs: Common Questions About 3D Printing and Custom Models for Molds
1. Can I directly 3D print a silicone mold?
While possible, direct 3D printing often requires significant post-processing to ensure smooth surfaces and durability.
2. What’s the best filament for making prototypes?
PLA for affordability, PETG for durability, and ABS for heat resistance are popular choices.
3. How do I scale up a mold with a small printer?
Print the design in sections and assemble them using adhesives or mechanical connectors. Many of the slicing apps have this option, if not there is free software available for this procedure.
Conclusion: Unlocking the Potential of 3D Printing and Custom Models
While 3D printing and custom models and mold making is an exciting development, its true strength lies in creating prototypes and models that serve as the foundation for high-quality mold production.
High quality molds are at the core of quality of all resin and other craft projects, like resin river tables, candle and soap molds work.
Recognizing the limitations of print size and surface finish allows makers to leverage the technology effectively and combine it with traditional techniques for optimal results.
If you’re ready to dive into this world of possibility, consider starting with Creality for affordability and upgradability option or Prusa for professional-grade precision out of the box. Whichever you choose, 3D printing and custom models and molds offers an incredible opportunity to innovate and refine your mold and model making process.
